1.8° 60H系列二相/四相混合式步进电机的技术参数General Specification
项目Item | 规格Specifications |
步距角精度Step Angle Accuracy | ± 5% (full step, no load) |
电阻精度Resistance Accuracy | ± 10% |
电感精度Inductance Accuracy | ± 20% |
温升Temperature Rise | 80°C Max. (rated current, 2 phase on) |
环境温度Ambient Temperature | - 10°C ~ +50°C |
绝缘等级Insulation Class | B |
介电强度Dielectric Strength | 500 VAC for one minute |
1.8° 60H系列二相/四相混合式步进电机的技术规格 Technique Specifications
型号 Model No. | 电压 Rated Voltage | 电流 Current | 电阻 Resistance | 电感 Inductance | 最大静力矩Holding Torque | 引出线 # of Leads | 动弹惯量Rotor Inertia | 沉量Weight | 机身长度Length |
V | A | W | mH | Kg-cm | g-cm2 | Kg | mm | ||
60BYGH3210 | 2.9 | 4.5 | 0.65 | 2.5 | 15 | 4 | 340 | 0.8 | 54 |
60BYGH4609 | 7.8 | 1.3 | 6.0 | 24.0 | 20 | 4 | 490 | 1.0 | 67 |
60BYGH6603 | 3.6 | 4.2 | 0.85 | 4.2 | 30 | 4 | 690 | 1.3 | 88 |
60BYGH7901 | 4.2 | 3.0 | 1.4 | 3.0 | 28 | 6 | 790 | 1.5 | 100 |

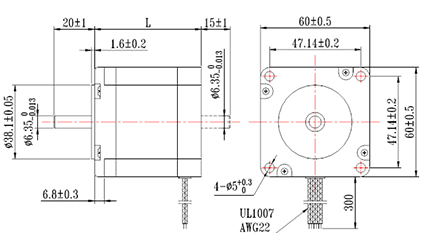

1.8° 60H系列二相/四相混合式步进电机的机械尺寸Dimensions(Unit=mm)

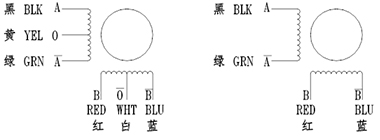

1.8° 60H系列二相/四相混合式步进电机的绕线图Wiring Diagram
